Fireplace Inserts

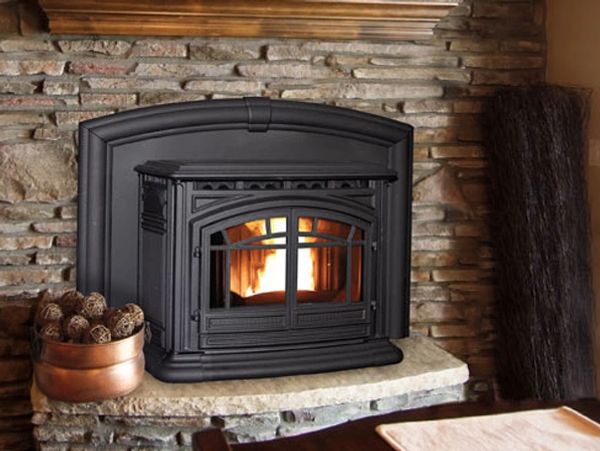

Empress Pellet Fireplace Insert


 Features

  • Cast iron construction.
  • Adjustable hopper height.
  • Shallow front extension.
  • Tri-mode thermostat.
  • Operates with cast doors open or closed.
  • Available in multiple finishes.


 Options

  • Cast Surround
    Antique Chestnut  |  Diamond Black
    Painted Black
    42" W x 30" H
  • O/S Trimmable Surround
    33 1⁄8" W x 46" H
  • Painted Black, Antique Chestnut or Diamond Black Enamel Finish.
  • Log Set.



Specifications

Heating Area

1,500 ft²

BTU's

34,000

Efficiency

83.1%

Glass Size

249 in²

Convection Fan

160 CFM

EPA Emissions

1.3 gms

Hopper Capacity

55 lbs

Unit Dims*

28” W x 20” H x 15” D

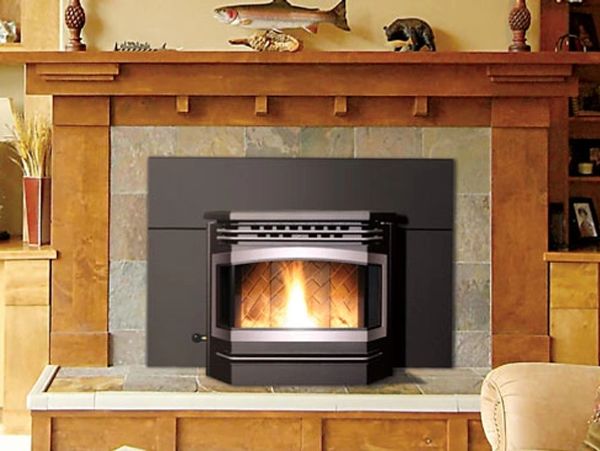

Milan Pellet Fireplace Insert


 Features

  • Cast iron heat exchanger.
  • Cast iron firebox liner.
  • Modern design.
  • Quiet convection system.
  • Formed steel surround panel.
  • Tri-mode thermostat.

 Options

  • Regular Surround
    44" W x 30" H
  • Available Liners:
  • Riser Skirt 2".
  • Riser Skirt 4".
  • Log Set.
  • Exhaust Starter Elbow.



Specifications

Heating Area

1,500 ft²

BTU's

34,000

Efficiency

83%

Glass Size

250 in²

Convection Fan

160 CFM

EPA Emissions

1.3 gms

Hopper Capacity

55 lbs

Unit Dims*

28” W x 21” H x 15” D

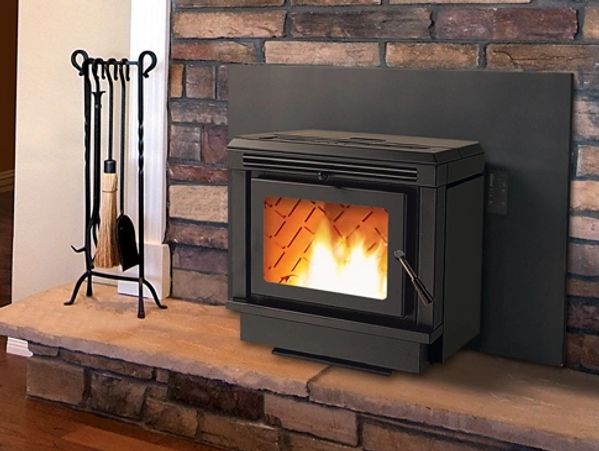

Meridian Pellet Fireplace Insert


 Features

  • Large arched bay door.
  • Tri-mode thermostat.
  • Remote thermostat compatible.
  • Large heat exchanger.
  • Zero-clearance compatible.

 Options

  • Oversize Surround
    46" W x 33" H
  • Regular Surround
    40" W x 30" H
  • Body Trim Kit in Pewter, Gold or Antique Copper
  • Door Cover in Pewter, Gold or Antique Copper.
  • Zero Clearance Kit.
  • Log Set (1 pc.)



Specifications

Heating Area

2,000 ft²

BTU's

45,000

Efficiency

75.8%

Glass Size

185 in²

Convection Fan

160 CFM

EPA Emissions

1.1 gms

Hopper Capacity

55 lbs

Install Dims*

22” W x 22 3⁄4” H x 11” D

M55 Cast Iron Pellet Fireplace Insert


 Features

  • Cast iron construction.
  • Multi-fuel compatible.
  • Air wash system for cleaner glass.
  • Operates with cast doors open or closed.
  • Available in multiple finishes.

 Options

  • O/S Filler Panel
    34" W x 50" H
  • Fresh Air Intake Coupler.
  • Service rails.
  • Log Set.
  • Exhaust Starter Tube.



Specifications

Heating Area

2,500 ft²

BTU's

55,000

Efficiency

83.5%

Glass Size

231 in²

Convection Fan

200 CFM

EPA Emissions

1 gms

Hopper Capacity

60 lbs

Install Dims*

25” W x 23” H x 16” D
